商品简介 Description

Catalogue Number

SLHPR33RB

Replaces

SLHP033RB

Trade Name

· Millex®

Description

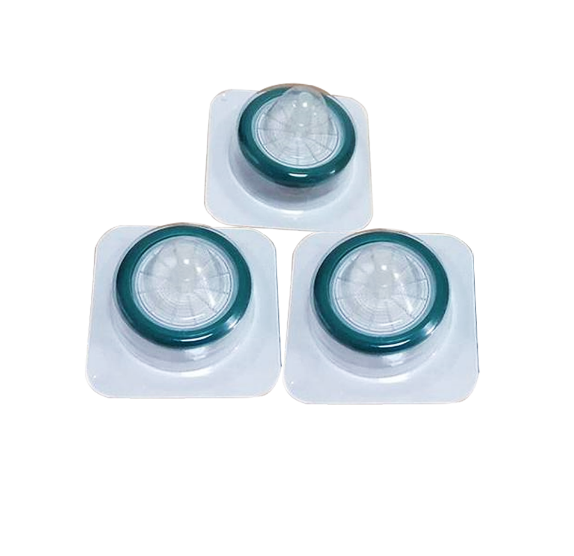

Millex-HP Syringe Filter Unit, 0.45 µm, polyethersulfone, 33 mm, gamma sterilized

Overview

This item is a direct replacement for SLHP033RB in countries where restricted.

Background Information

Sterile Millex filter units are available in a larger 33 mm housing with either MCE, PVDF or PES membranes.

Faster flow rate:
The larger filter surface area increases flow rate and throughput. It also makes it easier to filter solutions because it reduces the pressure required to empty the syringe.

Higher operating pressure:

Millex filters have a maximum housing pressure of 10.5 bar (150 psig), which means you can filter solutions faster than before.

Color-coded:

The color-coded band on the Millex housing clearly indicates which membrane is inside.

Manufactured for reliable performance:

Millex filters are manufactured in a controlled environment using an automated process. Human hands never touch the filter during assembly. A Certificate of Quality included in each box describes Millipore's quality standards in detail.

Choice of membranes:
Millex filters are available with three membranes: Millipore Express® (PES) membrane, mixed cellulose esters (MCE), and Durapore (PVDF).
- Millex-GP filters feature Millipore Express (PES) membrane, which provides a unique combination of speed and six times less protein binding than competitive PES membranes. Millex-GP filters are recommended for sterile filtering protein solutions, tissue culture media, buffers and additives.

- Millex filters with Durapore® (PVDF) membrane are the lowest protein-binding syringe filters available. Use them to filter protein solutions. The 0.2 µm filters are sterilizing grade. Larger pore sizes are for clarification and prefiltration.

- Millex-MF filters feature mixed cellulose esters (MCE) membrane, which provides reliable, general purpose filtration of water or other aqueous solutions. The 0.2 µm filters are sterilizing grade. Larger pore sizes are for clarification and prefiltration.
Applications:
Sterilization of Aqueous Solutions, Organic Solvents and Gases, Filtration of High Value Protein or Small Molecule Components.



Product Information

Connections, Inlet/Outlet

Female Luer-Lok/Male Luer slip

Filter Code

HP

Fitting Inlet

Female Luer-Lok®

Fitting Outlet

Male Luer slip

Color Code

Green

Maximum Inlet Pressure, bar (psi)

10 bar (145 psi)

Maximum Operating Temperature

45 °C

Direct Patient Care (Y/N)

N

Quality Level

MQ400



Applications

Application

A 33 mm diameter sterile syringe filter with a 0.45 µm pore size hydrophilic Polyethersulfone (PES) membrane. Comes in a pack of 250

Key Applications

· Sterilization of tissue culture media, protein solutions or aqueous solutions

· Low Protein Binding



Biological Information

Media

MF-Millipore

Sterility

Sterile

Sterilization

Gamma irradiation

Wettability

Hydrophilic

Stem Cell Type

· Mouse Embryonic Stem Cells

· Human Embryonic Stem Cells

· Mesenchymal Stem Cells

· Neural Stem Cells

· Hematopoietic Stem Cells

· Epithelial Cells

· Pancreatic Stem Cells

· Cardiac Stem Cells

· Induced Pluripotent Stem Cells



Physicochemical Information

Pore Size

0.45 µm

Hold-up Volume

< 0.1 mL



Dimensions

Height

27 mm

Diameter

3.3 cm

Filtration Area

4.5

Process Volume

100 mL

Volume

200 mL

Filter Diameter (⌀)

33 mm



Materials Information

Chemistry

· Hydrophilic Polyethersulfone (PES)

Device Material

· Modified acrylic



Product Usage Statements

Availability by Geography

· Global



Packaging Information

Material Size

250
